uPVC Window Parts Compatibility Guide: Cross-Reference Chart

When repairing or upgrading upvc window parts it pays to be systematic: manufacturers use many different profiles and fixings, and a mistaken order will cost time and money. This compatibility guide sets out what to measure, how to identify common components and a practical cross-reference chart to help traders and DIY homeowners get the right replacements first time.

Which components to identify first

Before you begin: note the window type (casement, tilt-and-turn, sliding), the opening direction and whether the unit is single or double glazed. The key components you will commonly need to cross-reference are:

• Handles and spindles
• Espagnolette gearboxes and rods (espags)
• Friction stays and hinges
• Keeps and strike plates
• Restrictors and shootbolts
• Gaskets and seals

Cross-reference checklist: what to measure and record

For accurate compatibility use the following checklist. Take clear photos of the old part next to a tape measure; most suppliers will match by images and dimensions.

• Manufacturer and part number: check the visible stamp or sticker; many spares are interchangeable across brands when measurements match.
• Handing: stand inside the room and open the window; if the hinges are on the left it is left-handed, if on the right it is right-handed; mark this on your order.
• Spindle size and type: measure the spindle thickness (commonly 7 mm square for uPVC handles) and spindle length from the handle face to the end; note whether it is a square or round spindle.
• Screw centre spacing: measure the distance between the fixing screws on the handle backplate; many replacements require matching screw centres.
• Espag length and fixing holes: measure the overall espag rod length and the distance between the gearbox centre and the end of the rod; note location of locking points and any mushroom cams or rollers fitted.
• Friction stay length and hole centres: measure from the centre of the pivot hole at the sash to the centre of the pivot hole at the frame; also note rivet or screw fixings and whether the stay is a standard or heavy-duty type.
• Keep profile and screw positions: measure from the top to the bottom of the keep and the distance between bolt entry points; mismatched keeps are a frequent cause of misaligned locking.

Quick compatibility chart (practical cross-reference)

Use the following as a quick reference when comparing old parts to potential replacements:

• Handle: Match spindle type (7 mm square is the most common), spindle length and screw centre; if these three match the handle will usually fit regardless of brand.
• Espag: Match overall rod length, gearbox position and fixing hole centres; verify handedness and type of locking cams (cams, runners or rollers).
• Friction stay: Match length by measuring pivot-to-pivot; check for identical fixings and whether the stay has a gearbox or friction pad; coastal installations benefit from stainless steel stays.
• Keep: Match the position of locking points relative to the frame edge and the screw centres; a new espag will often require the corresponding keep to be replaced for correct alignment.
• Restrictor/shootbolt: Match the fixing pattern and the projection length; shootbolts must engage fully into a compatible keep.
• Gaskets: Match profile (P-shaped, D-shaped, hollow) and width; replacement strips are often supplied in long lengths so check compression and colour.

Practical trade advice

For trade professionals carrying spares: keep a basic kit of common handle types (7 mm square spindles in a few lengths), a selection of espag rods in popular lengths, and friction stays in two or three standard sizes. Also carry adjustable keeps and a small selection of mushroom cams; these items allow rapid on-site repairs. Label kits with the measurements and typical window types to speed up selection.

DIY replacement guidance

Simple swaps such as handles and some espags are achievable for competent DIYers. Follow these practical steps:

• Take accurate measurements and photos before removing anything; keep the old part until the new one is fitted successfully.
• Support the sash when removing espags or friction stays; a falling sash can cause injury or damage.
• Use the correct screwdrivers and torque: do not over-tighten fixings as this can distort the uPVC and impede movement.
• Lubricate moving parts with a silicone-based lubricant or light grease; avoid heavy oils that attract dirt.
• After fitting, check alignment and ensure all locking points engage smoothly; adjust keeps or striker plates if the locking is stiff.

Common pitfalls and how to avoid them

Mistakes often come from assuming all components are universal. Avoid these common errors:

• Ordering by part picture alone: measure before you order; visual similarity can be misleading.
• Ignoring handing: an otherwise identical part may be mirror-imaged and will not fit.
• Not checking the frame profile: some keeps require a specific profile to sit flush.
• Using incorrect seal profiles: wrong gaskets can cause drafts and prevent sash closure.

Recommended Products

Based on this article, you may find these products helpful:

• Top Hung Friction Stay - 12"

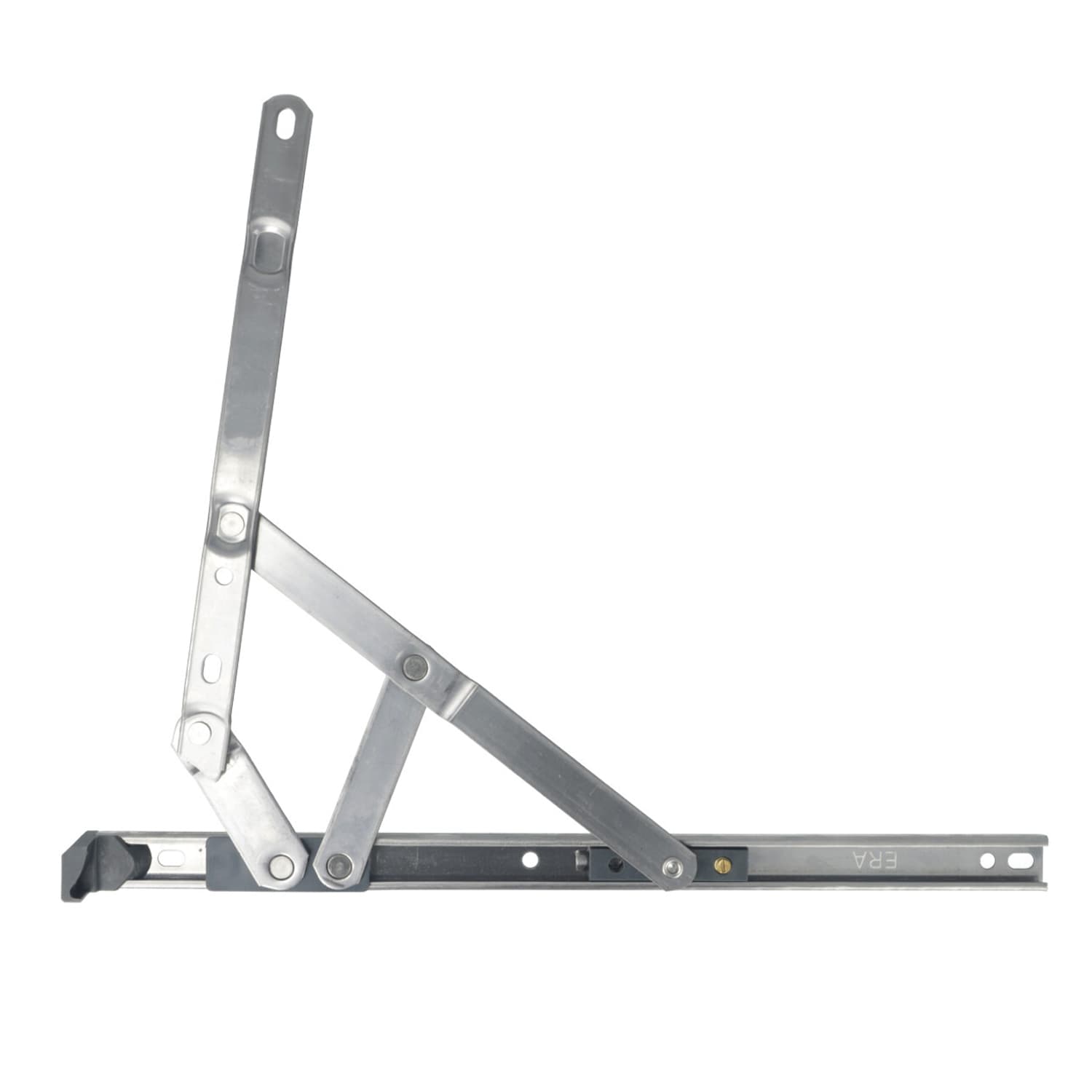

• ERA Egress (Fire escape) Friction Stay
• TSS Standard Friction Stays – 13mm & 17mm Stack Height
• Restricted Friction Stay Hinges
• ERAB Espagnolette Window Lock Universal Lock Replacement

Conclusion and next steps

Matching upvc window parts correctly requires accurate measurement, attention to handing and an understanding of how components interact. For tradespeople, standardising a parts kit and labelling by measurement saves time; for homeowners, photographing the old part and taking clear measurements will make ordering straightforward. If you need detailed part matching or bulk supplies visit our pillar page at /guides/double-glazing-supplies or contact Window Hardware Store with your photos and measurements for fast, reliable cross-referencing and trade pricing.
